INDIAN PLUGS

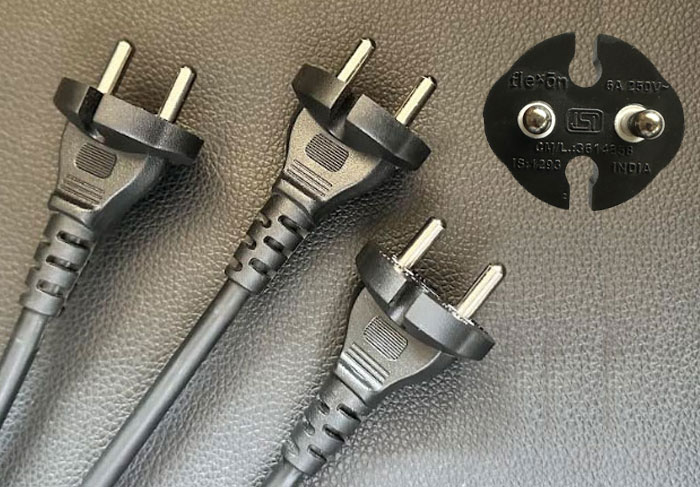

2 Pin Class-II - 6 AMP Indian Plug
The below 2 Pin Indian Plugs are used in Class-II appliances. These plugs are generally limited for use in appliance that require 6 AMP or less. They have 19.10 mm pin center distance Through the production of our own cable we can provide a range of modern solutions that meets the required quality standards.
Indian Plugs
Straight Type Plug
Angled Type Plug
TECHNICAL SPECIFICATION
| CABLE | DESCRIPTION | STANDARD | MODEL NO. | RATING |
| 0.50 SQ MM X 2C (FLAT) | ||||
| 0.75 SQ MM X 2C (FLAT) | ||||
| 0.50 SQ MM X 2C | 2 PIN INDIAN PLUG | IS :1293 | Type D | 6 A 250 V |
| 0.75 SQ MM X 2C | ||||
| 1.00 SQ MM X 2C |
The cable for above power cords is as per IS 694:2010.
2 Pin Class-II 6 AMP Indian Plug
The Type D electrical plug is two wire plugs that have two round pins of 5.03 - 5.105 mm round contacts and 19.10 mm pin centers distance. They are being replaced by E, F, J, K or N sockets which work perfectly with Type D plugs.
Indian Plugs
TECHNICAL SPECIFICATION
| CABLE | DESCRIPTION | MODEL NO. | RATING |
| 0.50 SQ MM X 2C | 6 A 250 V | ||
| 0.75 SQ MM X 2C | 2 PIN STRAIGHT PLUG | Type D | 6 A 250 V |
| 1.00 SQ MM X 2C | 6 A 250 V |
The cable for above power cords is as per IS 694:2010 or IEC 60227
3 Pin Class-I 6 AMP Indian Plug
The Type D electrical plug has three round pin in a triangular pattern. Type M plug are often used alongside Type D plugs for large appliance and as a result, some socket work both Type D and Type M plugs.
| CABLE | DESCRIPTION | MODEL NO. | STANDARD | RATING |
| 0.50 SQ MM X 3C | 6 A 250 V | |||
| 0.75 SQ MM X 3C | 3 PIN INDIAN STRAIGHT PLUG | TYPE D | IS:1293 | 6 A 250 V |
| 1.00 SQ MM X 3C | 6 A 250 V |
The above power cord are available in IS & IEC marked.
3 Pin Class-I 16 AMP Indian Plug
TECHNICAL SPECIFICATION
| CABLE | DESCRIPTION | MODEL NO. | STANDARD | RATING |
| 1.00 SQ MM X 3C | 3 PIN INDIAN STRAIGHT PLUG | TYPE M | IS:1293 | 16 A 250 V |
| 1.50 SQ MM X 3C | 16 A 250 V |
The above power cord are available in IS & IEC marked.
