INDIAN PLUGS

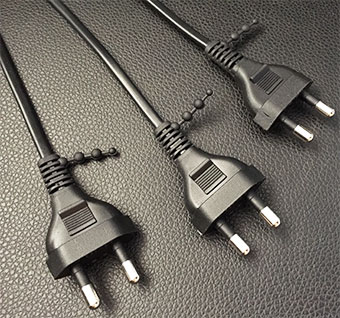

2 Pin Class-II - 2.5 AMP Indian Plug

The Type C electrical plug (or Indian plug) is a two wire plug that has two round pins. It fits into any socket that accepts 5.03 – 5.105 mm round contacts and 16.50 mm pin center distance . They are being replaced by E, F, J, K or N sockets. Which work perfectly with type C plugs. Type C plug are generally limited for use in appliance that require 2.5 AMP or less.

TECHNICAL SPECIFICATION

CABLE	DESCRIPTION	MODEL NO.	RATING
0.50 SQ MM X 2C (FLAT)	2 PIN INDIAN PLUG	TYPE C	2.5 A 250 V
0.75 SQ MM X 2C (FLAT)	2 PIN INDIAN PLUG	TYPE C	2.5 A 250 V

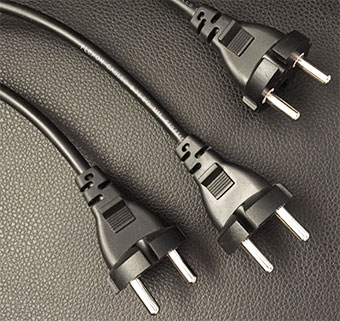

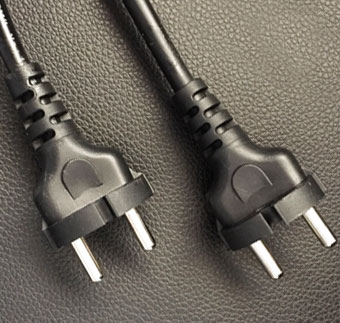

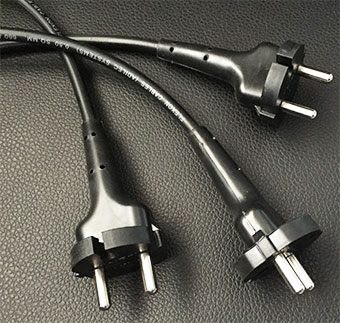

2 Pin Class-II - 6 AMP Indian Plug

The below 2 Pin Indian Plugs are used in Class-II appliances. These plugs are generally limited for use in appliance that require 6 AMP or less. They have 19.10 mm pin center distance Through the production of our own cable we can provide a range of modern solutions that meets the required quality standards.

Indian Plugs

Straight Type Plug

Angled Type Plug

TECHNICAL SPECIFICATION

CABLE	DESCRIPTION	STANDARD	MODEL NO.	RATING
0.50 SQ MM X 2C (FLAT)
0.75 SQ MM X 2C (FLAT)
0.50 SQ MM X 2C	2 PIN INDIAN PLUG	IS :1293	Type D	6 A 250 V
0.75 SQ MM X 2C
1.00 SQ MM X 2C

The cable for above power cords is as per IS 694:2010.

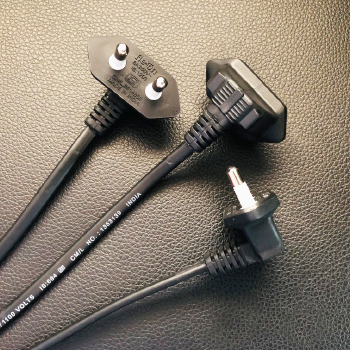

2 Pin Class-II 6 AMP Indian Plug

The Type D electrical plug is two wire plugs that have two round pins of 5.03 - 5.105 mm round contacts and 19.10 mm pin centers distance. They are being replaced by E, F, J, K or N sockets which work perfectly with Type D plugs.

TECHNICAL SPECIFICATION

CABLE	DESCRIPTION	MODEL NO.	RATING
0.50 SQ MM X 2C			6 A 250 V
0.75 SQ MM X 2C	2 PIN STRAIGHT PLUG	Type D	6 A 250 V
1.00 SQ MM X 2C			6 A 250 V

The cable for above power cords is as per IS 694:2010 or IEC 60227

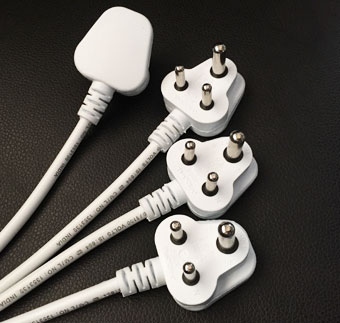

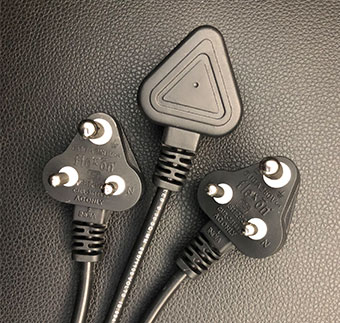

3 Pin Class-I 6 AMP Indian Plug

The Type D electrical plug has three round pin in a triangular pattern. Type M plug are often used alongside Type D plugs for large appliance and as a result, some socket work both Type D and Type M plugs.

CABLE	DESCRIPTION	MODEL NO.	STANDARD	RATING
0.50 SQ MM X 3C				6 A 250 V
0.75 SQ MM X 3C	3 PIN INDIAN STRAIGHT PLUG	TYPE D	IS:1293	6 A 250 V
1.00 SQ MM X 3C				6 A 250 V

The above power cord are available in IS & IEC marked.

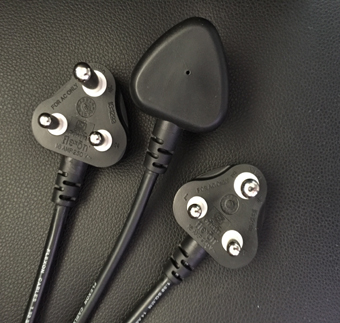

3 Pin Class-I 16 AMP Indian Plug

TECHNICAL SPECIFICATION

CABLE	DESCRIPTION	MODEL NO.	STANDARD	RATING
1.00 SQ MM X 3C	3 PIN INDIAN STRAIGHT PLUG	TYPE M	IS:1293	16 A 250 V
1.50 SQ MM X 3C	3 PIN INDIAN STRAIGHT PLUG	TYPE M	IS:1293	16 A 250 V

The above power cord are available in IS & IEC marked.
