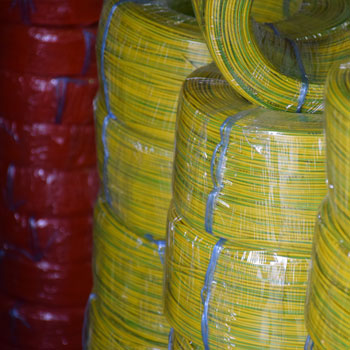

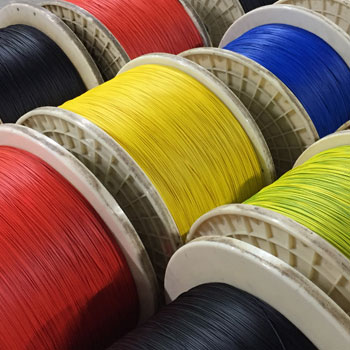

AUTOMOTIVE CABLES

In short span of time Flexon has become one of the leading manufacturer of Automotive Cables, We are engaged in the fast and efficient production of high quality products that are acclaimed for their functioning and durability. The vast experience and manufacturing potential has enabled us to hold strong position in the market.
We share a trusted relation with our clients for our adherence to qualitative production. Our highly experienced technicians and professionals have helped us to achieve remarkable heights of success.

Flexon is manufacturing a wide range of quality automotive cables to the automotive sector for their supplies to heavy duty and light duty vehicles for four wheelers and two wheelers for the purpose of lighting, igniting, battery charging, starter, steering column, horn, signaling, motor antenna, motorized out side rear view mirror, power windows, stereo systems, communication etc. Flexon Automotive cables are manufactured in different standards DIN: 72551 PART 5 & 6, JASO: 611D, JIS: 3406, BS: 6862, IS: 2465 and ISO 6722 (CLASS A / B / C / D with bright annealed high conductive electrolytic copper conductor conforming to the requirements of the Specified Standard. We also manufactures as per customer specification and standards.


AV CABLES

Description
Reference standard: JIS C3406 Resistant to heat, oil, abrasion and cold... Excellent to flexibility
Stranded copper conductor Available in colours & stripes Flexible wire (Optional)

Internal wiring in automobile, where high flexibility, thermal and mechanical strength is required.

   Size/mm2    Conductor No./mm     Conductor Dia./mm     Insulation Min. Thick/mm     Insulation Nom. Dia./mm     Maximum Resistance at 20˚C(Ώ/km)
   0.50F    20/0.18    0.95    0.48    2.30    36.7
   0.50    20/0.18    1.00    0.48    2.20    36.7
   0.75F    30/0.18    1.20    0.48    2.40    24.4
   1.25F    11/0.32    1.25    0.48    2.50    20.8
   0.85    50/0.18    1.50    0.48    2.80    14.7
   1.25    16/0.32    1.50    0.48    2.80    14.3
   2.00    26/0.32    1.92    0.48    3.25    8.81
   3.00    41/0.32    2.40    0.56    3.95    5.59
   5.00    65/0.32    3.04    0.64    4.75    3.52
   8.00    50/0.45    3.75    0.72    5.65    2.32
   15.00    84/0.45    4.87    0.88    7.20    1.38

AVS CABLES

Description
Reference standard : JASO D611-94 Resistance to heat, oil, abrasion and cold Excellent flexibility
Stranded copper conductor Available in colours & stripes Flexible wire (Optional)

Internal wiring in automobile where high flexibility, thermo and mechanical strength is required.

   Size/mm2    Conductor No./mm     Conductor Dia./mm     Insulation Min. Thick/mmm     Insulation Nom. Dia./mm     Maximum Resistance at 20˚C(Ώ/km)
   0.30    7/0.26    0.81    0.32    1.85    50.20
   0.30F    15/0.18    0.82    0.32    1.85    48.80
   0.50    7/0.32    1.00    0.32    2.05    32.7
   0.50F    20/0.18    0.95    0.32    2.05    36.7
   0.75F    30/0.18    1.16    0.32    2.25    24.40
   0.85    16/0.26    1.22    0.32    2.25    22.00
   0.85    11/0.32    1.25    0.32    2.25    20.80
   1.25    16/0.32    1.51    0.32    2.55    14.30
   1.25F    50/0.18    1.50    0.32    2.55    14.70
   2.00    26/0.32    1.92    0.32    3.00    8.81
   2.00F    37/0.26    1.87    0.32    3.00    9.50
   3.00    41/0.32    2.38    0.40    3.70    5.59
   5.00    65/0.32    3.00    0.48    4.50    3.52


AVSS CABLES

Description
Reference standard : JASO D611-94 Resistance to heat, oil Excellent mechanical strength
Stranded copper conductor Available in colours, stripes and ring marks. Available in colours and stripes

Bundle type wiring in automobile where high flexibility, thermo and mechanical strength are required.

   Size/mm2    Conductor No./mm     Conductor Dia./mm     Insulation Min. Thick/mmm     Insulation Nom. Dia./mm     Maximum Resistance at 20˚C(Ώ/km)
   0.30    7/0.26    0.80    0.24    1.45    50.20
   0.30F    19/0.16    0.82    0.24    1.45    48.80
   0.50    7/0.32    1.00    0.24    1.65    34.60
   0.50F    19/0.19    0.98    0.24    1.65    34.60
   0.75F    19/0.23    1.18    0.24    1.85    23.60
   0.85    19/0.24    1.23    0.24    1.85    21.70
   0.85    7/0.40    1.25    0.24    1.85    20.80
   1.25    19/0.29    1.50    0.24    2.15    14.90
   1.25F    37/0.21    1.50    0.24    2.15    14.60
   2.00    19/0.37    1.90    0.32    2.75    9.00
   2.00    37/0.26    1.87    0.32    2.65    9.50

DIN CABLES

Description
Reference standard : DIN 72551 / 1996 Resistant to heat, oil, abrasion and cold Excellent mechanical Flexibility
Concentric on bunching stranded copper conductors are available Available in colours, stripes and ring marks. Lead and cadmium free PVC insulation

Bundle and hardness type wiring in automotive wire where high flexibility, thermo and mechanical strength are required.

   Size/mm2    Conductor No./mm     Conductor Dia./mm.     Insulation Min. Thick/mmm     Insulation Nom. Dia./mm     Maximum Resistance at 20˚C(Ώ/km)
   0.35    12/0.21    0.90    0.20    1.40    52.0
   0.50    16/0.21    1.00    0.22    1.60    37.10
   0.75    24/0.21    1.20    0.24    1.90    24.7
   1.00    32.0.21    1.35    0.24    2.10    18.5
   1.50    30/0.26    1.70    0.24    2.40    12.7
   2.50    50/0.26    2.20    0.28    3.00    7.6
   4.00    56/0.31    2.75    0.32    3.70    4.7
   6.00    84/0.31    3.30    0.32    4.30    3.10
