DOMESTIC CABLES

  • Home
  • Wires and cables
  • Domestic cables

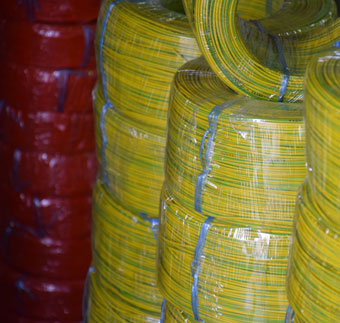

DOMESTIC CABLES

Flexon brand is a qualitative brand name in the field of wires and cables. We offer wide range of products designed specially for our customers, combined with advanced research and technology, rapid product development capability and in depth sales and technical service. Quality is an integrated part of all of our activities, all our plant works according to the quality standards.

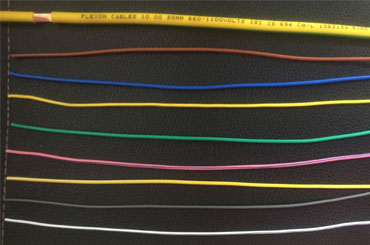

FLEXON PLAIN COPPER CONDUCTOR,PVC INSULATED UNSHEATHED 660/1100V, SINGLE CORE CABLE FOR PANEL BOARD WIRING AS PER IS:694:2010 WITH ISI MARK (UP TO 50 SQ MM)

Area in sq.mm Cond.Dia. in mm Cable Dia(Approx) Max. Dc Resistance Ohm/km At 20°C Current Rating in Amp Area in sq.mm Cond. Dia. in mm Max. Dc Resistance Ohm/km At 20°C Cables Dia(Approx) Current Rating in Amp
0.5 0.94 2.20 39.00 4 70 12.3 0.272 15.50 170
0.75 1.20 2.50 26.00 7 95 14.7 0.206 18.50 210
1.0 1.34 2.60 19.50 11 120 16.70 0.161 20.90 235
1.5 1.64 2.90 13.30 14 150 18.3 0.129 22.50 295
2.5 2.08 3.50 7.98 19 185 20.00 0.106 24.60 330
4.0 2.61 4.30 4.95 26 240 23.00 0.0801 27.60 400
6.0 3.50 5.30 3.3 33 300 27 0.0641 32.20 475
10.0 4.60 6.70 1.910 45 400 30.5 0.0486 35.70 550
16.0 6.0 8.20 1.21 60 500 32 0.0384 38.00 635
25.0 7.60 10.00 0.780 75 630 39.00 0.0287 45.5 725
35.0 8.70 11.30 0.554 95 800 44 0.0178 51.00 840
50.0 10.60 13.50 0.386 125 1000 46 0.0178 53.00 950


SINGLE CORE PVC INSULATED WIRES INCLUDING VOLTAGE GRADE 660/1100 VOLTS, CONFORMING TO IS: 694:2010.

   Conductor Area in (sq. mm)    No / dia of strand (mm)     Approx overall diameter (mm)     Current carrying capacity in conduits/truking (Amps)     Max. Resistance at 20°c Ohm/km
   1.00    1/1.2    2.70    11    18.10
   1.50    3/0.80    3.20    13    12.10
   2.50    3/1.04    3.90    18    7.41
   4.00    7/0.85    4.25    24    4.61
   6.00    7/1.04    4.95    31    3.08
   10.00    7/1.35    6.30    42    1.83
   16.00    7/1.70    7.30    57    1.15
   25.00    7/2.14    9.00    74    0.727
   35.00    7/2.54    10.00    90    0.524
   50.00    19/1.78    12.00    123    0.387
