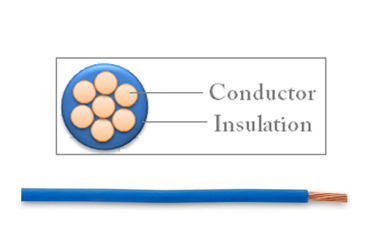

FLEXON UL STYLE – 1015 HOOKUP WIRE
FLEXON UL STYLE – 1015 HOOKUP WIRE
Application : these cables are uesd for internal wiring of panels and electrical equipment. These are used as connection wire in machines laid in protective tubes and flexible pipies and also for motors and transformers.
Feature :
- PVC insulation
- Rated voltage 600 V ac or 750 V dc and rated temeprature 105˚c
- Withstands the flame test UL VW-1 and FT1 heat and damp resistant
- Resistant to oils, solvents, acids and alkalics
- For elctronics use up to 2500 V
| Style | Conductor | Insulation | Standard | ||
| Nominal Size | Approx Outer Diameter | Conductor Resistance at 20°c | |||
| mm² | AWG | mm | (Ω/km) | ||
| UL 1015 | 0.202 | 24 | 2.2 | 87.6 | UL 758 UL 1581 |
| UL 1015 | 0.32 | 22 | 2.3 | 55.4 | |
| UL 1015 | 0.52 | 20 | 2.6 | 34.6 | |
| UL 1015 | 0.82 | 18 | 2.85 | 21.8 | |
| UL 1015 | 1.31 | 16 | 3.1 | 13.7 | |
| UL 1015 | 2.08 | 14 | 3.50 | 8.62 | |
| UL 1015 | 3.30 | 12 | 4.00 | 5.43 | |
| UL 1015 | 5.26 | 10 | 4.7 | 3.401 | |
